What Are Canard Wings? How Forward Control Surfaces Change Flight

You’re used to seeing wings at the rear, but have you ever seen one mounted up front? That’s a canard, a small forewing that gives lift instead of a tail pushing the nose down.

Canards have always been sort of a riddle in aviation. While they were designed with performance benefits in mind, they still come with their unique set of challenges. This has made them a source of inspiration for both pilots and aircraft designers.

So, how do they work? And what’s it like to fly an aircraft that has one? Let’s talk about the science behind canard wings. When you understand how forward control surfaces affect your flight, you’ll start seeing new ways to fly.

Key Takeaways

• Canard wings are small forward surfaces ahead of the main wing that aid lift and control.
• Canards improve maneuverability, reduce trim drag, and help prevent stalls during specific flight conditions.
• They also obstruct visibility, demand careful stability management, and are structurally complex.
• The future of canard wings depends on designs that balance performance with its stability challenges.

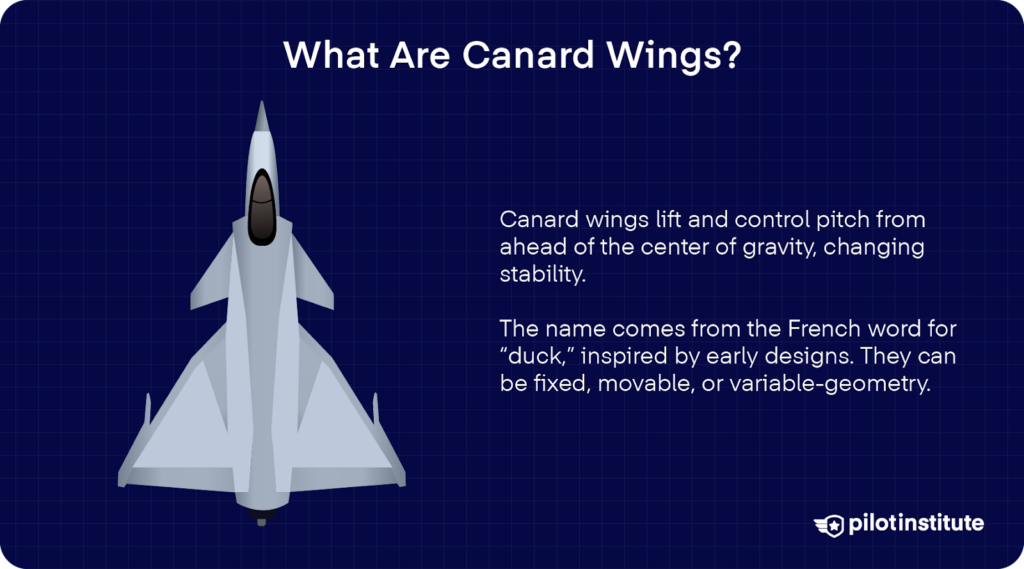

What Are Canard Wings?

Canards lift and control the aircraft’s pitch. Depending on the type of canard you have (and yes, there are different types), they may share lifting duties or act only as control surfaces.

This design is a challenge to conventional aircraft design. Since the control surface sits ahead of the center of gravity, your stability dynamics change.

But why is it called “canard?” It comes from the French word for duck, because early aircraft with this setup, like the Santos-Dumont 14-bis, looked like a duck stretching its neck.

Canards come in various forms. Some are fixed, others movable. You’ll also find variable-geometry canards like the Beechcraft Starship that change shape in flight.

Historical Development

We meet canard wings first in the earliest days of aviation, starting with the iconic Wright Flyer.

Their first kite included a front surface for pitch control, and they adopted this configuration for their first Flyer. But what might come as a surprise is that the Wright Flyer’s canard actually came from a place of caution.

How so? The Wrights had seen Otto Lilienthal fall to his death in a conventional tail glider. From this tragedy, they thought that having a control surface at the front would be a safer design choice.

That design, however, came with a price: pitch instability. Their Flyer fought to stay steady, so they added weights to the nose. They stuck with the canard design until around 1910, when they finally shifted to a conventional tailplane.

Designers briefly moved away from canards after that. Few appeared after 1911, as tailplanes proved more stable and easier to understand.

Then, as materials and control systems advanced, canard layouts returned. This came in the forms of the North American XB-70 Valkyrie and the Soviet equivalent Sukhoi T-4.

Saab’s Viggen in 1967 revived modern canards, soon followed by fighters like the Mirage variants, IAI Kfir, and Atlas Cheetah.

Designers like Burt Rutan also embraced canard configurations in popular homebuilt models like the VariEze and Long-EZ.

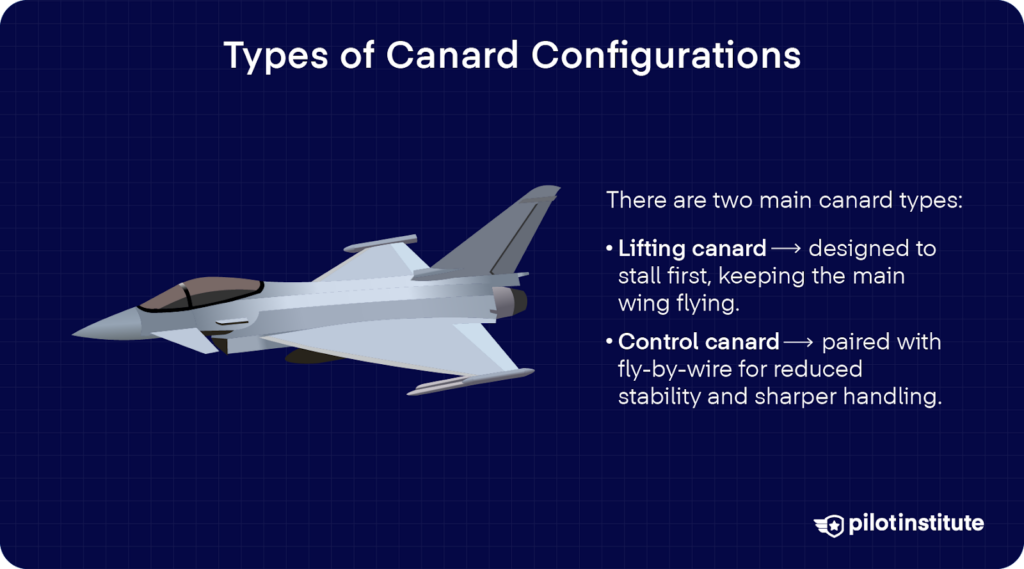

Types of Canard Configurations

Earlier, we touched on how canards can come in different types, depending on the purpose they’re designed for. You can have one that gives you an extra lift, and another that helps you stay stable.

But how do they work? Let’s take a closer look.

Lifting Canard

First up, we’ve got the lifting canard. You’ll see a lifting canard when it actually helps hold up the aircraft. It shares the load with the main wing, instead of acting like a rear tail that pushes down.

What does this mean? Your canard provides additional lift, especially during takeoff when the main wing is most loaded. But while it lessens demand on the main wing, the main wing still needs to be large enough because the canard must stall first for safety.

For this to work, there are different forces that need to be balanced. It often uses high wing loading and a specific airfoil. As a result, your main wing may still need to be larger than you’d expect from the reduced load.

Control Canard

On the other hand, a control canard isn’t really there for lift but for pitch control. It usually sits at a neutral angle during cruise, and only engages when you maneuver.

A control canard works by acting like a forward-mounted elevator. Positioned ahead of the main wing, it changes the aircraft’s pitch by altering the amount of lift it generates.

Sometimes, designers use lightly loaded or unloaded canards to make a combat aircraft deliberately less stable. This sounds counterintuitive, but reduced stability allows quicker, sharper turns. The flight control system then steps in to maintain stability.

Comparison Between Lifting and Control Canards

With a lifting canard, you carefully tailor its lift profile so it stalls first. The main wing must remain more capable because of that constraint.

With a control canard, you lean on computer-aided fly-by-wire systems. That lets you purposely reduce stability for sharper handling, especially in combat roles, without losing control.

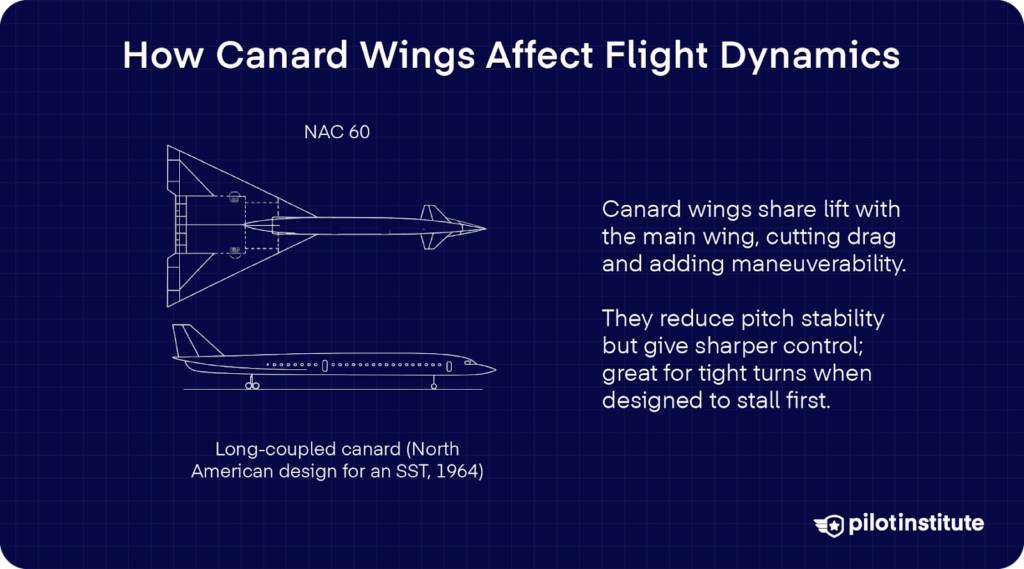

How Canard Wings Affect Flight Dynamics

Have you wondered how canard wings will impact the way you fly?

A canard shares part of the lifting job with the main wing. That means your main wing isn’t working as hard, which opens the door to design tweaks.

It throws a downwash over the main wing. That can shift airflow in ways that help (or hurt) lift and drag, depending on the exact layout.

You may see less trim drag compared to the traditional tail pushing down, though total aerodynamic efficiency depends on careful balancing.

Stability and Control

With a canard up front, your aircraft tends to have less pitch stability naturally. Designers must work harder to keep it manageable.

Shifting the canard-wing airflow interaction can also move your aircraft’s neutral point (the point that defines pitch stability), which changes how the aircraft feels and responds.

Most pilots prefer positive stability, but neutral or even negative stability is not automatically a deal-breaker.

As stability decreases, the airplane demands more of your attention. You have to anticipate its movements and lead your control inputs, which means a higher workload in the cockpit.

Maneuverability and Performance

Did you know that canards help you be more nimble? You get sharper pitch control and tighter turns, which is just what combat jets love. You can also design the canard to stall first with features that gently force the nose down and help you recover safely.

At higher angles of attack, your canard’s airflow can help keep lift flowing over the main wing. The effect? Better handling during tough maneuvers.

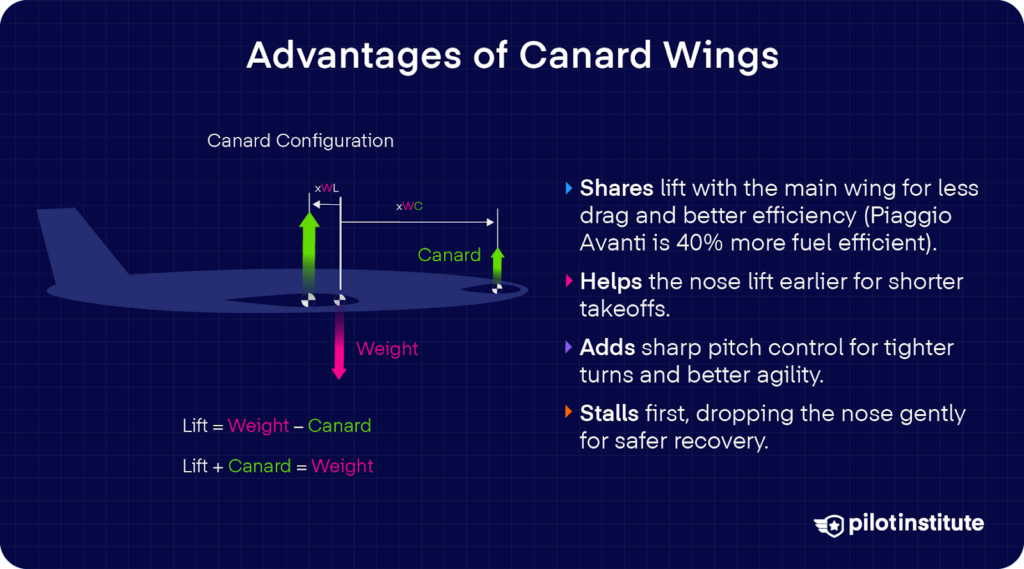

Advantages of Canard Wings

Picture your aircraft with a small wing up front that helps carry the load (apart from looking cool). The canard shares lifting duties with the main wing. It lightens the main wing’s workload and trims the aircraft upward.

On takeoff, that forward wing helps raise your nose early. You’ll get a faster rotation and a shortened ground run as a result.

For example, the Piaggio P.180 Avanti is found to have 40% better fuel efficiency than other airplanes in its class. How does it do this? Since it uses three lifting surfaces, including a canard, they’ve managed to slash drag by over 30%.

Improved Maneuverability

With your canard, you gain extraordinary pitch control. Its placement gives you quick, accurate responses, even in tight turns or during aggressive aerobatics.

Canard wings bring a real edge to agility, especially in fighters. When placed just ahead of the main wing, a close-coupled canard creates vortices that energize airflow over the main wing at high angles of attack.

That delays stall and lets the aircraft sustain lift deeper into maneuvers. What does this mean for you as a pilot? You can pull tighter turns or pitch faster without losing control.

Stall Characteristics

Stall safety gets a boost with a canard up front. Designers intentionally set up canards to stall before the main wing.

When that happens, the nose drops gently. That downturn recaptures airflow over the main wing and helps you fly out of the stall..

Research supports that this stall behavior depends on careful design of the foreplane. What factors should be considered?

Its airfoil shape, aspect ratio, geometry, and placement, plus the aircraft’s center of gravity all make a difference when it comes to keeping stalls controllable.

But aside from simply letting the nose drop, in configurations where the canard sits close to or just above the main wing, aerodynamic interaction can delay when the main wing stalls.

At high angles of attack, that close coupling helps maintain lift longer and pushes the stall to occur at higher angles than you’d expect without a canard.

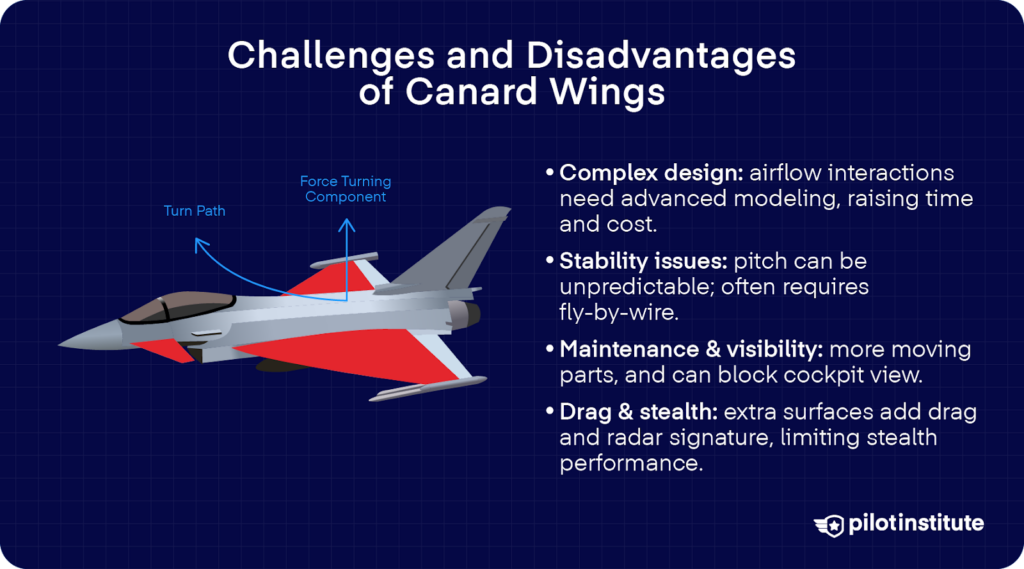

Challenges and Disadvantages of Canard Wings

Complexity in Design

As you can imagine, designing canard wings takes some intense precision. The airflow between the canard and main wing creates complex aerodynamics full of vortex interactions and unsteady behavior.

You’ll need advanced modeling and computation just to predict how your aircraft will behave in flight. This complexity can affect both design time and cost.

So, how can you fly a canard effectively? You need to balance lift, drag, stability, and control all at once. Even a slight miss in sizing can throw off performance dramatically.

The challenge of hitting that aerodynamic sweet spot means your design process has to be tight, and mistakes could cost a lot more than in a traditional aircraft.

Stability Issues

Placing a lifting surface ahead of the center of gravity makes static pitch stability unpredictable. Your aircraft becomes more prone to pitch-wide behavior, especially at slow speeds or when weight shifts occur.

It can also fall into pilot-induced oscillations if sensitivity is too high. Some designs (for example, the Grumman X-29) rely on fly-by-wire systems making dozens of corrections every second to keep everything smooth.

Even small shifts in loading can change handling way more than you’d expect. And because natural pitch damping drops in canard layouts, you lose some of the aircraft’s natural steadiness.

Structural and Visibility Concerns

Adding a canard means extra surfaces. Every moving piece needs careful inspection and servicing. Each hinge, actuator, and linkage only adds to your maintenance checklist.

Then there’s a more personal challenge: the canard can block part of your view from the cockpit. Having a wing right ahead of you isn’t ideal for visibility and can make takeoff, landing, or taxiing feel a bit awkward.

If you’re retrofitting an existing aircraft, the canard brings its own headaches. You have to rethink the center of gravity, trim balance, aerodynamic flow, and a lot more variables. You’ll practically be redesigning key parts of your aircraft just to make sure it flies safely.

Drag and Stealth Considerations

Canard wings add surface area to the aircraft, and that means more parasitic drag. Remember that it includes shape-based form drag and friction drag, both of which grow with velocity.

At transonic and supersonic speeds, aircraft face a special penalty known as wave drag, caused by shock waves forming around the body and wings. Introducing canards can disrupt the smooth flow, potentially increasing wave drag and reducing high-speed efficiency.

How do canard wings perform under stealth? Unfortunately, canards can make your aircraft more visible on radar.

Each adds edges and surfaces that can reflect radar signals. The more parts and angles the aircraft has, the more potential there is for radar cross-section to grow.

One recent study notes that a canard’s radar cross-section increases as its deflection angle grows. Movements during combat or maneuvers can make the aircraft more visible to radar.

Some modern fighters like the Eurofighter Typhoon use software to angle their canards defensively. It was done as an attempt to balance performance with a reduced radar signature.

But many stealth-first aircraft such as the F-22 drop canards entirely for that reason. Even the Chinese J-20 integrates canards with stealth shaping, but the trade-off remains delicate.

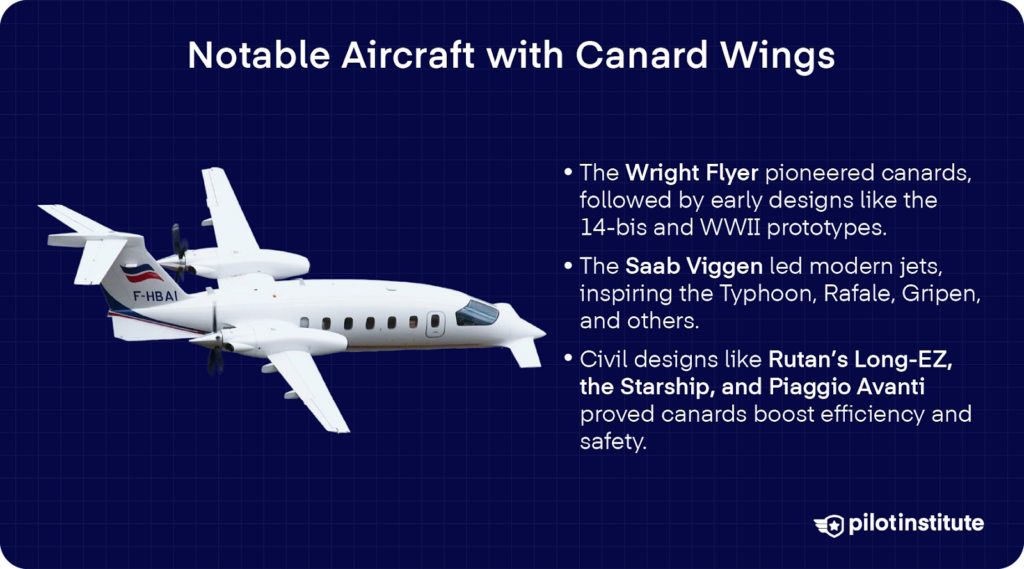

Notable Aircraft with Canard Wings

Historical Examples

The Wright Flyer was the very first powered aircraft to fly using a canard. The Wrights chose that layout to gain better control and because it offered some protection in crashes, though it made their Flyer notoriously unstable in pitch.

In Europe, the Santos-Dumont 14-bis earned its canard design its name: the French called it a “canard,” or duck. The Fabre Hydravion blended that layout into a seaplane design, and it became the first to fly on water with a canard setup.

Did the canards fly during World War II? Well, yes, but only as experimental prototypes. For example, the Curtiss-Wright XP-55 Ascender took the concept into the experimental fighter realm. More than anything, it showed that designers were willing to explore unconventional layouts for new possibilities in performance.

Modern Military Aircraft

Sweden’s Saab 37 Viggen was the first modern combat jet to enter production with a close-coupled canard-delta design. Its canards helped provide lift, improve airflow over the main wing, support short takeoffs and landings, and enhance high-angle-of-attack handling.

This success inspired aircraft like the Eurofighter Typhoon, Dassault Rafale, and Saab JAS 39 Gripen. They all used canards integrated with advanced flight-control systems to deliver superior agility and stability.

Fighter jets such as the Chinese Chengdu J-10 and the Sukhoi Su-30MKI also adopt canards to boost maneuverability and responsiveness.

Civilian and Experimental Aircraft

Burt Rutan’s VariEze and its successor, the Long-EZ, brought canards into the homebuilt aviation world. They give you stall resistance and efficient cruise. Overall, you get strong performance. As a result, Rutan’s designs became extremely popular among builders.

For the business side of aviation, the Beechcraft Starship carried that innovation. You’ll see it pairing a canard with a pusher-propeller layout and composite construction.

The Piaggio P180 Avanti made use of canards to improve performance and fuel efficiency in its executive turboprop category.

How about on the experimental side? The Scaled Composites Proteus used canards for its high-altitude launch operations.

Then you’ve got the Beechcraft Starship, which is a civilian aircraft with a true lifting canard. Its advanced materials and design all paid off. The canard contributed to lift, it stalled before the main wing, and it helped manage nose-down pitch when the flaps are extended.

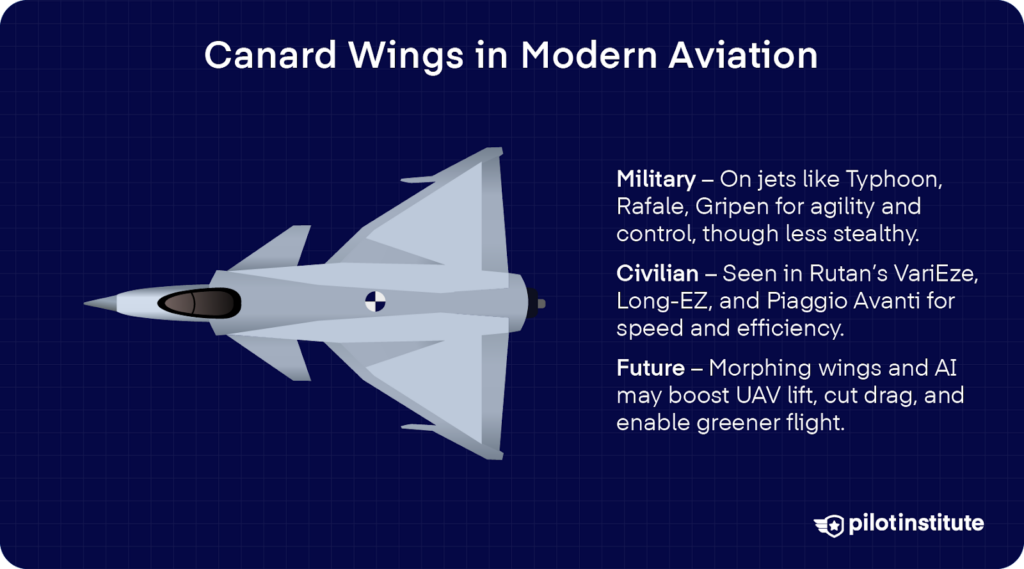

Canard Wings in Modern Aviation

Military Applications

Where do canards fit in today’s aviation? These days, canards give modern fighter jets an edge in agility. Modern jets like the Eurofighter Typhoon, Dassault Rafale, and Saab Gripen make use of close-coupled delta canards directed over the main wing. At high angles of attack, they get a more energized airflow.

You’ll find these aircraft pair intentionally unstable aerodynamic designs with advanced fly-by-wire systems. This is done on purpose to manage control surfaces, which helps them remain stable.

But for stealth aircraft, they face a trade-off. Canards tend to raise radar return. Some designs sidestep this using advanced composites or morphing geometries to obscure radar reflections.

Civilian and General Aviation

In the experimental and homebuilt community, canards remain popular for their efficient performance and stall-resistant behavior. Notable examples include Rutan’s VariEze and Long-EZ.

In business aviation, you’ve got the Piaggio P.180 Avanti. Its canard plus main wing and tail design makes for incredible aerodynamic efficiency. The three-surface layout allows for high cruise speed with lower fuel consumption. Plus, it frees up cabin space while cutting both noise and drag.

Future Prospects and Innovations

What does the future hold for canard wings? Researchers are now looking into self-morphing wings and tails, much like bird feathers adjusting with the breeze. One study used morphing surfaces guided by in-flight optimization and found that they could save energy up to 11.5% compared to rigid wings.

Canards are becoming a secret weapon for UAV designers. In high-altitude, long-endurance drones, a canard foreplane boosts maximum lift and cuts trim drag.

A study using deep reinforcement learning helped control a canard rotor-wing aircraft at high angles of attack. The result? Less unpredictable motions with fluid-like control surfaces.

That’s a hint of what’s to come: canards controlled using AI could boost efficiency, especially during agile maneuvers. Combine that with aerodynamic lift-sharing benefits and lighter morphing surfaces, and you’ve got a recipe for quieter, greener flight.

Conclusion

Canard wings leave a mark on flight design because they lean into innovation as much as they lean forward. These configurations have many real advantages to offer. But at the same time, they call for careful engineering.

You learn something by balancing these trade-offs. More than following tradition, they teach you when to step off the norm. That mindset shows design thinking at its best.

Keep exploring canard concepts. With all the advances we’ve seen, forward control surfaces might appear in the next wave of aircraft. Watch out, because you might be seeing more of them in experimental jets or next-gen UAVs.

The future of canard wings depends on technology, and on people like you who challenge tradition for better flight.
